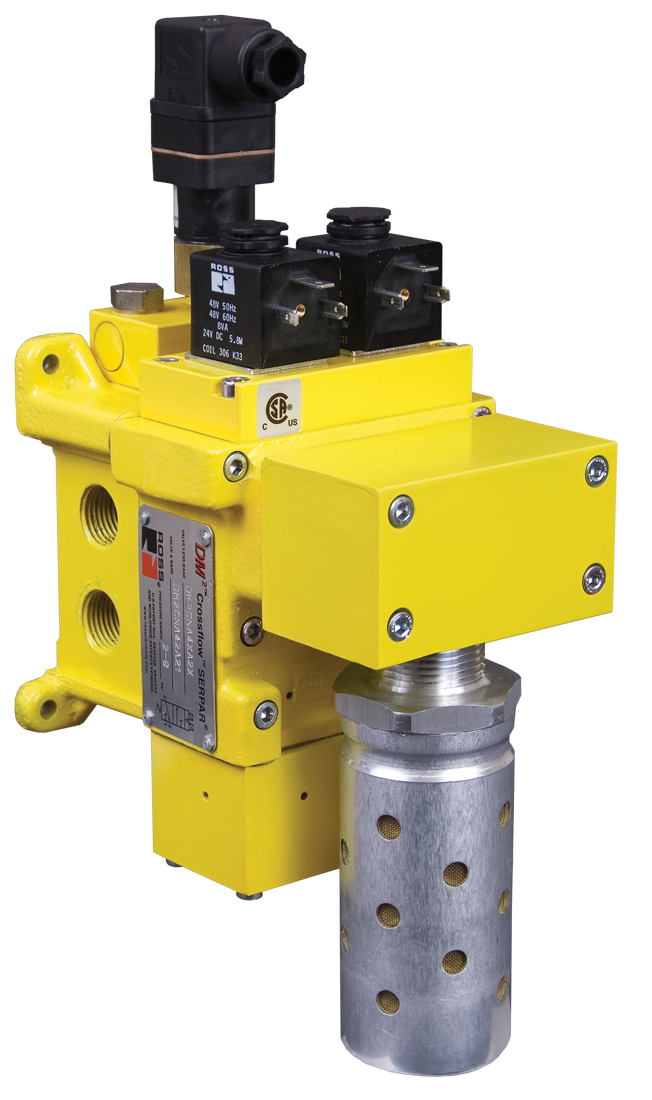

DM2C Series Double Valve DM2CDA55B22
- Redundant control can achieve Category 4, PL e, when used with proper safety controls
- Dynamic Monitoring, and air flow control functions are simply integrated into two identical valve elements
- Asynchronous movement of valve elements is detected by the dynamic monitoring and the valve latches in the safe condition, resulting in a residual outlet pressure of less than 1% of supply
- Manual valve reset
- Poppet design that is dirt tolerant, wear compensating for quick response and high flow capacity
- PTFE backup piston rings enhances valve endurance enabling operation with or without in-line lubrication
- Includes a pressure switch with both normally open (NO) and normally closed (NC) contacts to provide status feedback to the control system indicating whether the valve is in the lockout or ready-to-run condition
- High flow, clog resistant silencer included
- Base mounted for ease of valve replacement, captive valve-to-base mounting screws
- Inlet and outlet ports on both sides (plugs for unused ports included)
- SISTEMA Library available for download
Product Information
| Series | DM2C Series |
| Valve Function | Redundant 3/2 Single Solenoid |
| Construction | Dual Poppet |
| Actuation | Electrical |
| Soft Start | Not Included |
| Lockout | Not Included |
| Monitoring | Internal |
| Feedback | Solid State Pressure Sensor |
| Reset | Solenoid |
| Basic Size | 8 |
| Inlet Size | 1" |
| Outlet Size | 1" |
| Exhaust Size | 1" |
| Thread Type | G |
| Ports 1-2 Flow (Nl/min) | 4231 |
| Ports 2-3 Flow (Nl/min) | 9250 |
| Feedback Rating | Supply Voltage - 8-30 volts DC, Current Consumption <4mA |
| Voltage | 110/120 VAC |
| Power Consumption | 36 VA inrush; 24.6 VA holding |
| Solenoid Connection | EN 175301-803 Form A |
| Feedback Connection | M12 5-pin |
| Operating Pressure Max | 120 psig (8.3 bar) |
| Operating Pressure Max (bar) | 8.3 |
| Pilot Supply | Internal |
| Height (mm) | 323.3 |
| Length (mm) | 137.4 |
| Width (mm) | 190 |
| Weight | 8.4 lbs (3.7 kg) |
| Mounting | Base Mount |
| Ambient Temperature (Celsius) | -10 to 50 |
| Media Temperature (Celsius) | 4 to 80 |
| Flow Media | Filtered, lubricated or unlubricated (mineral oils according to DIN 51519, viscosity classes 32-46) |
| Valve Body Material | Cast Aluminum |
| Poppet/Spool Material | Acetal and Stainless Steel |
| Seal Material | Buna-N |
| Safety Category | Category 4 |
| PL Rating | PL e |
| Safety Integrity Level | SIL 3 |
| DGUV Certification | Yes |
| CE Certification | Yes |
| EAC Declaration | Yes |
+
DM2C Series Double Valve
DM2CDA55B22
Contact Us for a 3D Model
+
DM2C Series Double Valve
DM2CDA55B22
Contact ROSS India for Ordering Information
+
