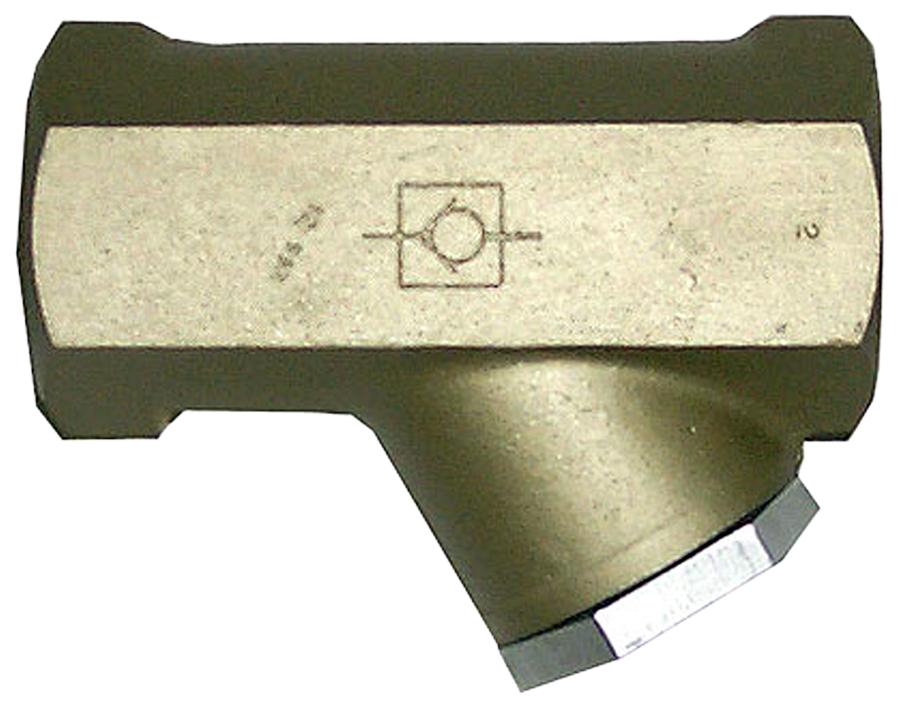

Check Valves 1968A6107
- Self-cleaning poppet design tolerates dirty air
- Low cracking pressure
- Serviceable in-line
- Quiet operation due to soft-seal design
Product Information
| Valve Type | Check Valve |
| Series | 19 |
| Application | High Capacity |
| Actuation | Pneumatic |
| Function | 2/2 |
| Thread Type | NPT |
| Construction | Poppet |
| Mounting | Inline |
| Ambient Temperature | -40 to 175 F (-40 to 80 C) |
| Ambient Temperature (Celsius) | -40 to 80 |
| Media Temperature | -40 to 175 F (-40 to 80 C) |
| Media Temperature (Celsius) | -40 to 80 |
| Fluid Media | Filtered Air |
| Operating Pressure | 5 to 150 psig (0.3 to 10 bar) |
| Operating Pressure (bar) | 0.3 to 10 |
| Pilot Supply Minimum | equal to or greater than inlet |
| Valve Body Material | Cast Aluminum |
| Size | 1-1/4" |
| Length | 5.35 in (135.9 mm) |
| Length (mm) | 135.9 |
| Width | 2.36 in (60.0 mm) |
| Width (mm) | 60 |
| Height | 4.27 in (108.5 mm) |
| Height (mm) | 108.5 |
| Weight | 2.0 lb (0.9 kg) |
| Weight (kg) | 0.9 |
| Inlet Pipe Size | 1" |
| Outlet Pipe Size | 1" |
| Avg Cv | 17 |
+
