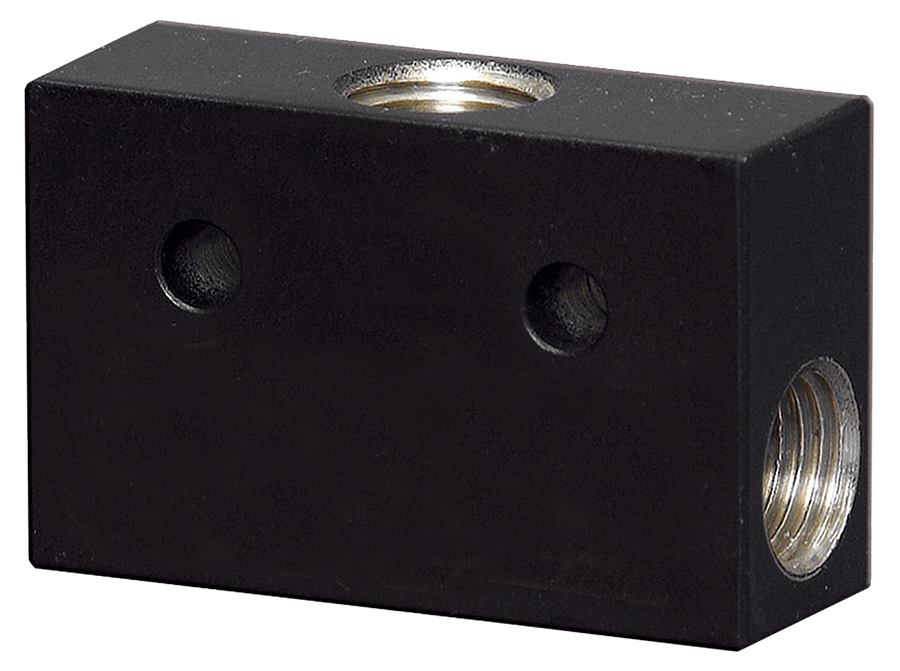

Shuttle Valves 1968E2006



  • Two Inlets & One Outlet
  • Poppet construction
  • Low Maintenance
  • Tolerant of Dirty Air

Need Help? No Problem!

Customer Service

91-44-4395 3800


Product Information

Valve Type Shuttle Valve
Series 19
Actuation Pneumatic
Function 2/2
Thread Type NPT
Inlet Pipe Size 1/4"
Outlet Pipe Size 1/4"
Construction Poppet
Mounting Inline
Ambient Temperature -40 to 175 F (-40 to 80 C)
Ambient Temperature (Celsius) -40 to 80
Media Temperature -40 to 175 F (-40 to 80 C)
Media Temperature (Celsius) -40 to 80
Fluid Media Filtered Air
Operating Pressure 5 to 150 psig (0.3 to 10 bar)
Operating Pressure (bar) 0.3 to 10
Valve Body Material Cast Aluminum
Application General
Length 1.98 in (50 mm)
Length (mm) 50
Width 0.75 in (19 mm)
Width (mm) 19
Height 1.25 in (32 mm)
Height (mm) 32
Weight 0.15 lb (0.07 kg)
Weight (kg) 0.07
Avg Cv 0.8
