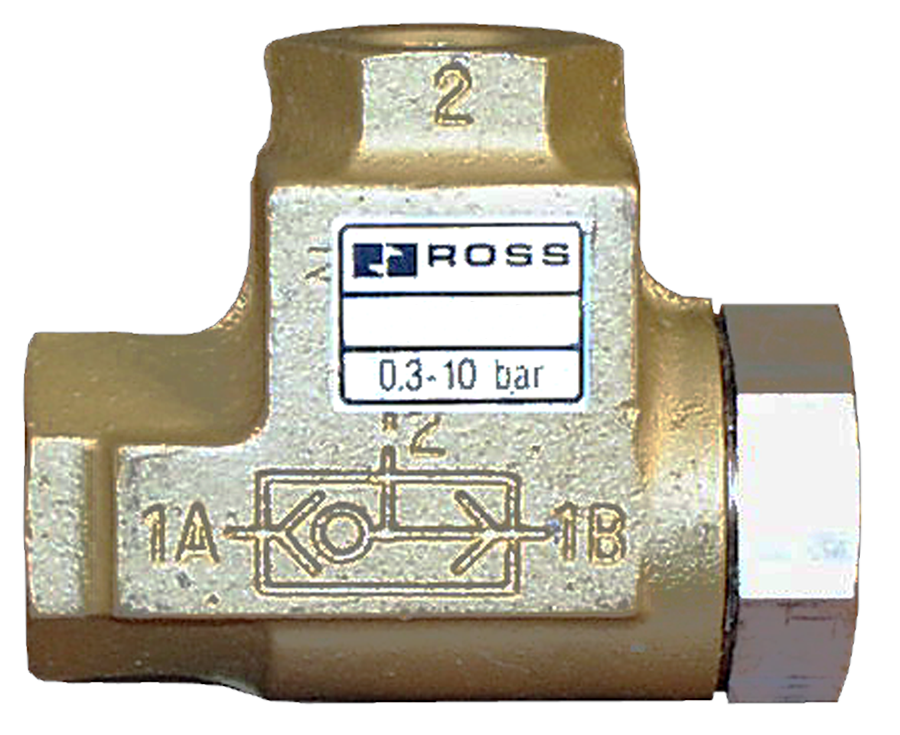

Shuttle Valves 1968D3003
- Two Inlets & One Outlet
- Poppet construction
- Low Maintenance
- Tolerant of Dirty Air
Product Information
Valve Type | Shuttle Valve |
Series | 19 |
Application | High Flow |
Actuation | Pneumatic |
Function | 2/2 |
Thread Type | NPT |
Construction | Poppet |
Mounting | Inline |
Ambient Temperature | -40 to 175 F (-40 to 80 C) |
Ambient Temperature (Celsius) | -40 to 80 |
Media Temperature | -40 to 175 F (-40 to 80 C) |
Media Temperature (Celsius) | -40 to 80 |
Fluid Media | Filtered Air |
Operating Pressure | 5 to 150 psig (0.3 to 10 bar) |
Operating Pressure (bar) | 0.3 to 10 |
Length | 2.64 in (67 mm) |
Length (mm) | 67 |
Width | 1.25 in (32 mm) |
Width (mm) | 32 |
Height | 2.13 in (54 mm) |
Height (mm) | 54 |
Weight | 0.8 lb (0.4 kg) |
Weight (kg) | 0.4 |
Valve Body Material | Cast Aluminum |
Inlet Pipe Size | 3/8" |
Outlet Pipe Size | 3/8" |
Avg Cv | 3 |
