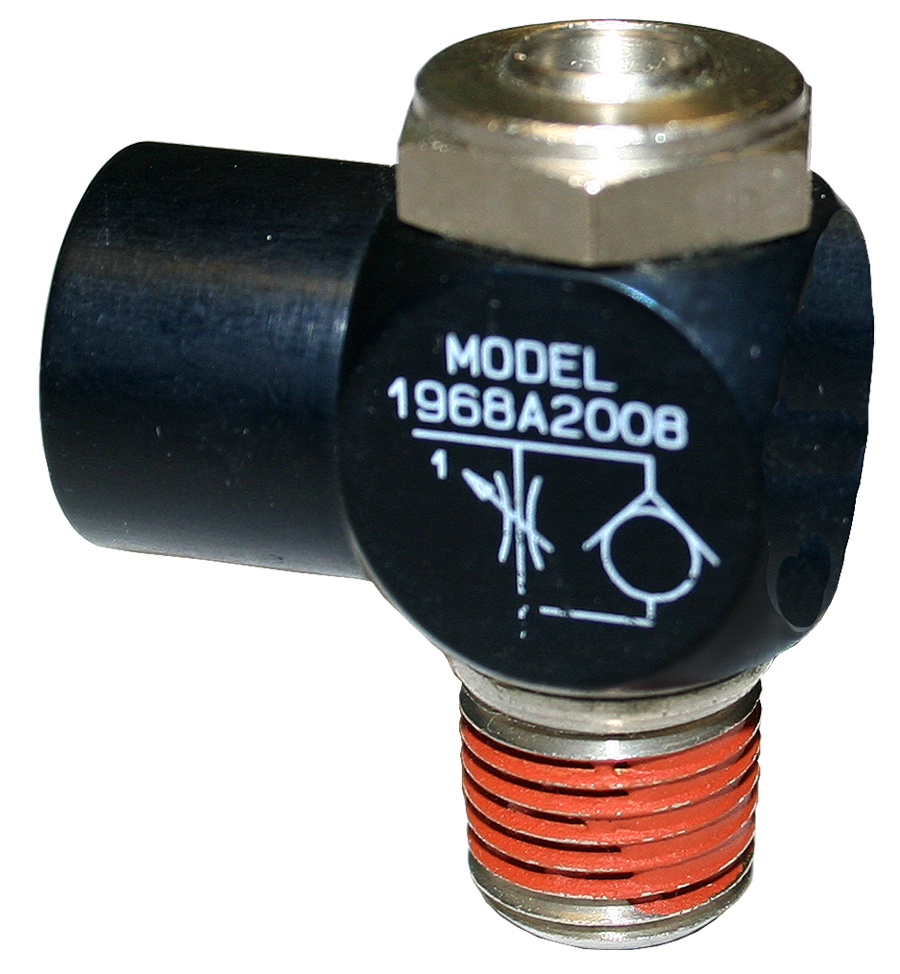

Flow Controls 1968A2008
- Low profile, high capacity & right angle series available
- Available with NPT & BSPP port threads
- Low profile series includes slot & knob adjustment options
- High capacity series includes inline & offset orientation options
- Right angle series includes slot & knob adjustment options
Product Information
Valve Type | Flow Control Valve |
Series | 19 |
Application | General |
Actuation | Pneumatic |
Function | 2/2 |
Thread Type | NPT |
Construction | Poppet |
Mounting | Inline |
Ambient Temperature | 40 to 175 F (4 to 80 C) |
Ambient Temperature (Celsius) | 4 to 80 |
Media Temperature | 40 to 175 F (4 to 80 C) |
Media Temperature (Celsius) | 4 to 80 |
Fluid Media | Filtered Air |
Operating Pressure | 5 to 150 psig (0.3 to 10 bar) |
Operating Pressure (bar) | 0.3 to 10 |
Valve Body Material | Cast Aluminum |
Adjustment | Slot |
Profile | Right Angle |
Inlet Pipe Size | 1/4" |
Outlet Pipe Size | 1/4" |
Avg Cv | 0.6 |
Length | 0.79 in (20 mm) |
Length (mm) | 20 |
Width | 1.3 in (33 mm) |
Width (mm) | 33 |
Height | 1.6 in (41 mm) |
Height (mm) | 41 |
Weight | 0.12 lb (0.05 kg) |
Weight (kg) | 0.05 |
