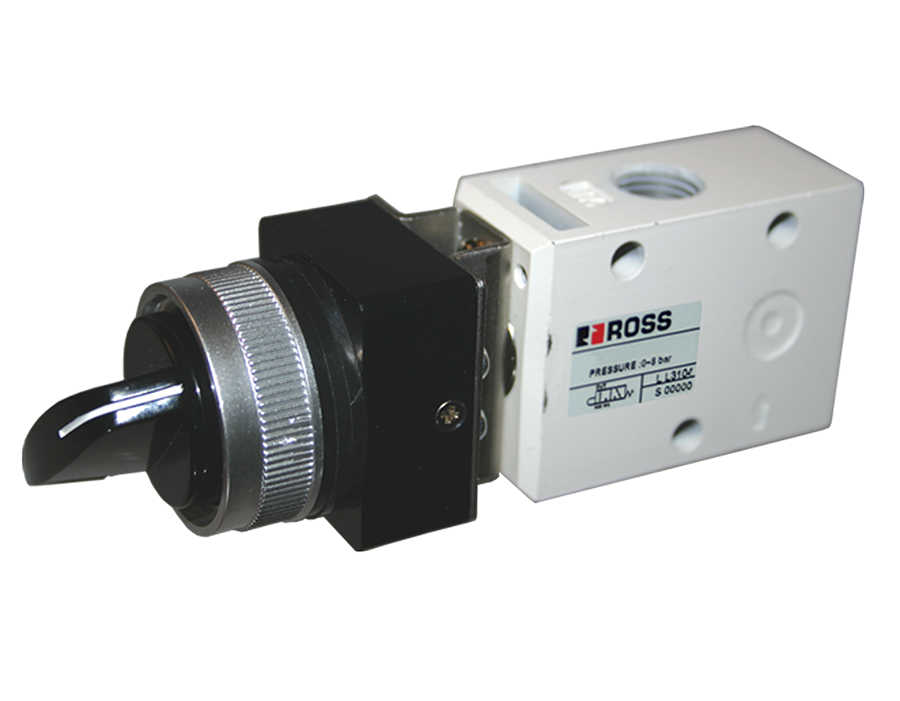

Selector Switch Valves 1223B1SLB





  • 3/2 inline, spool & sleeve valve
  • Black switch knob actuator
  • Normally Close, or Normally Open operations simply by piping the inlet supply accordingly

Need Help? No Problem!

Customer Service

91-44-4395 3800


Product Information

Valve Type Directional Control
Series 12
Application General
Actuation Manual Selector Switch
Function 3/2
Default Position Normally Open
Return Detented
Thread Type NPT
Inlet Pipe Size 1/8"
Outlet Pipe Size 1/8"
Exhaust Pipe Size 1/8"
Construction Spool & Sleeve
Mounting Inline
Avg Cv 0.6
Ambient Temperature 40 to 175 F (4 to 80 C)
Ambient Temperature (Celsius) 4 to 80
Media Temperature 40 to 175 F (4 to 80 C)
Media Temperature (Celsius) 4 to 80
Fluid Media Filtered air
Operating Pressure 5 to 150 psig (0.3 to 10 bar)
Operating Pressure (bar) 0.3 to 10
Length 1.46 in (37 mm)
Length (mm) 37
Width 4.6 in (118 mm)
Width (mm) 118
Height 1.26 in (32 mm)
Height (mm) 32
Weight 0.31 lb (0.14 kg)
Weight (kg) 0.14
Valve Body Material Cast Aluminum
