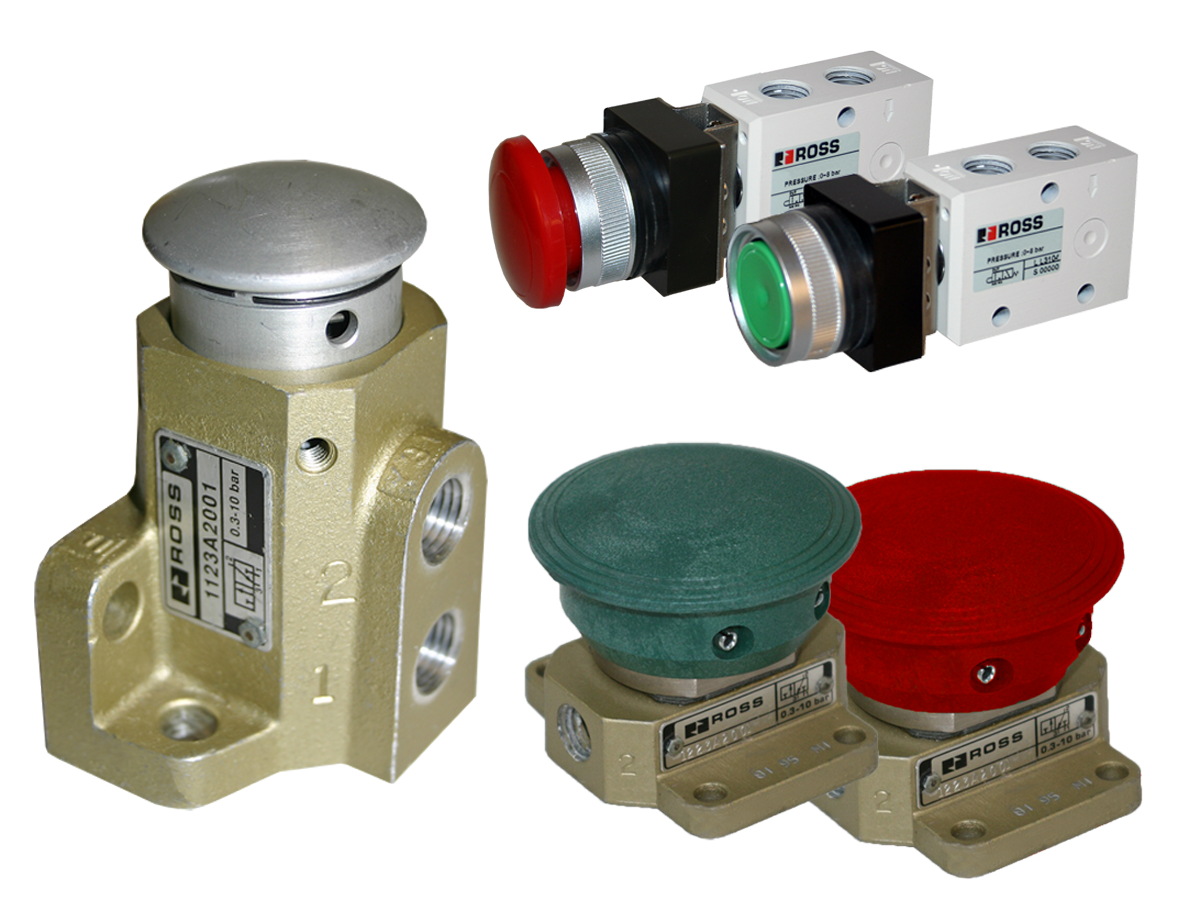

Palm & Push Button Valves 1223B2FPR
- Pushbutton Valves
- Palm Button Valves
- Heavy-Duty Palm Button Valves
Product Information
| Valve Type | Directional Control |
| Series | 12 |
| Application | General |
| Actuation | Manual Pushbutton |
| Function | 3/2 |
| Default Position | Normally Closed |
| Return | Spring |
| Thread Type | NPT |
| Inlet Pipe Size | 1/4" |
| Outlet Pipe Size | 1/4" |
| Exhaust Pipe Size | 1/4" |
| Construction | Spool & Sleeve |
| Mounting | Inline |
| Avg Cv | 0.9 |
| Ambient Temperature | 40 to 175 F (4 to 80 C) |
| Ambient Temperature (Celsius) | 4 to 80 |
| Media Temperature | 40 to 175 F (4 to 80 C) |
| Media Temperature (Celsius) | 4 to 80 |
| Fluid Media | Filtered air |
| Operating Pressure | 5 to 150 psig (0.3 to 10 bar) |
| Operating Pressure (bar) | 0.3 to 10 |
| Length | 1.46 in (37 mm) |
| Length (mm) | 37 |
| Width | 3.9 in (99 mm) |
| Width (mm) | 99 |
| Height | 1.26 in (32 mm) |
| Height (mm) | 32 |
| Weight | 0.34 lb (0.15 kg) |
| Weight (kg) | 0.15 |
| Valve Body Material | Cast Aluminum |
| Poppet/Spool Material | Aluminum |
| Button Type | Flush |
| Button Color | Red |
+
Palm & Push Button Valves
1223B2FPR
Contact Us for a 3D Model
+
Palm & Push Button Valves
1223B2FPR
Contact ROSS India for Ordering Information
+
