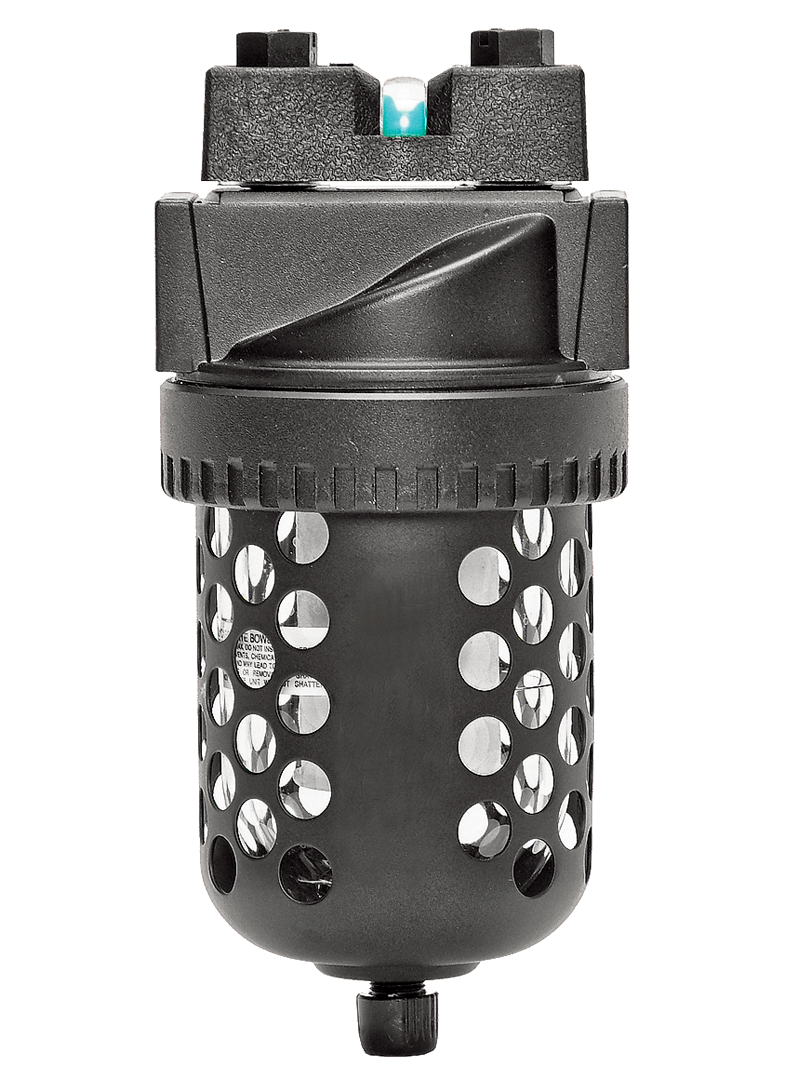

Full-Size Series C5031B4228
- Modular or inline mounting
- 0.3-micron rated coalescing filter element, or 0.01-micron rated filter element
- Differential pressure gauge
- High-strength polycarbonate plastic filter bowl with steel shatterguard, metal bowl with clear nylon sight glass, or extended bowl
- Automatic drain, or manual drain
Product Information
| PORT SIZE | 1/2 |
| PORT THREAD | BSPP |
| FILTER TYPE | 0.01 µm |
| DRAIN TYPE | Manual |
| BOWL TYPE | Polycarbonate |
| BOWL SIZE | 20 oz (600 ml) |
| FILTER MATERIAL | Borosilicate Glass |
| PORT TYPE | Threaded Ports |
| MOUNTING | Modular |
| MAXIMUM FLOW | 77 scfm |
| FLOW MEDIA | Compressed Air |
| INLET PRESSURE RANGE | Up to 150 psig (10 bar) |
| AMBIENT TEMPERATURE RANGE | 40 to 125 F (4 to 52 C) |
| MEDIA TEMPERATURE RANGE | 40 to 125 F (4 to 52 C) |
+
Full-Size Series
C5031B4228
Contact Us for a 3D Model
+
Full-Size Series
C5031B4228
Contact ROSS India for Ordering Information
+
